Customizing the Tuva Data Model

Published

February 12, 2026

By Rabee Zyoud · February 12, 2026

Rabee Zyoud is the founder of SnowQuery, a healthcare data engineering and architecture consultancy. He has implemented Tuva for nearly 10 healthcare and life sciences organizations. For questions, implementation assistance, or consulting inquiries, contact hello@snowquery.com.

Intro

Across most Tuva implementations I’ve worked on, teams need to carry organization-specific fields through the model. Common examples include care navigation ownership, payer-specific identifiers, and authorization metadata. Before v0.17.0, these fields often get dropped in core staging models because many models use explicit column lists.

With v0.17.0, Tuva introduces native extension-column pass-through support. Using a standard prefix convention (default: x_) and a reusable macro, host projects can add custom columns once and keep them available throughout Tuva core outputs.

The Problem

Healthcare organizations frequently need custom columns alongside Tuva’s standardized models:

Model	Example Extension Columns
`patient`	`x_care_navigator`, `x_salesforce_id`
`eligibility`	`x_member_tier`
`medical_claim`	`x_authorization_number`, `x_referral_id`
`encounter`	`x_department_name`

Without pass-through support, those fields are preserved in input_layer but dropped in downstream core models that use explicit selections. Teams then have to maintain extra joins and rematerialize data downstream.

Typical impact:

More custom SQL in host projects
More tables/views to manage
Higher maintenance and compute costs
Slower downstream pipelines

In this post, I walk through:

The pass-through pattern introduced in v0.17.0
A before/after model example
The select_extension_columns macro
A practical adoption checklist

What v0.17.0 Introduces

Tuva now supports extension-column pass-through driven by two variables:

vars:
  passthrough:
    prefix: 'x_'    # Prefix that marks extension columns
    strip: false    # If true, remove prefix in final output aliases

Variable	Default	Description
`passthrough.prefix`	`'x_'`	Prefix used to identify extension columns
`passthrough.strip`	`false`	Whether to strip prefix in final core model output

Data Flow

Host models publish standard Tuva columns plus extension columns (for example, x_*).
input_layer__* models still use SELECT *, so all fields are preserved.
Core staging/final models call select_extension_columns(...) to append extension columns dynamically.

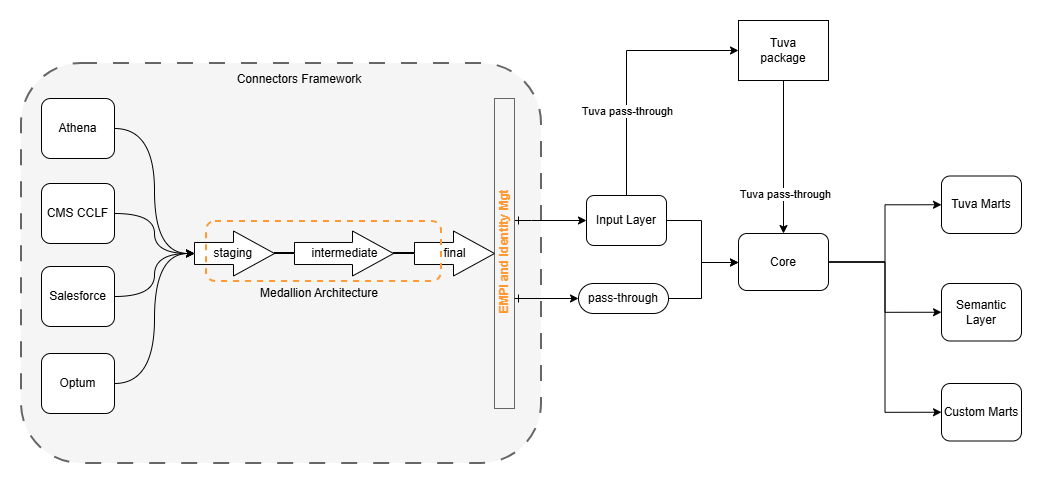

Extension Column Pass-Through Architecture

How the Pattern Works

Core models are organized into column groups so extension behavior is explicit and reusable:

{%- set tuva_core_columns -%}
    -- Tuva standard columns
{%- endset -%}

{%- set tuva_extension_columns -%}
    {{ select_extension_columns(ref('input_layer__patient'), strip_prefix=false) }}
{%- endset -%}

{%- set tuva_metadata_columns -%}
    , data_source
    , tuva_last_run
{%- endset -%}

select
    {{ tuva_core_columns }}
    {{ tuva_extension_columns }}
    {{ tuva_metadata_columns }}
from ...

This keeps model SQL readable and ensures extension columns are not lost.

Before and After Example

Before (`core__stg_clinical_patient.sql`)

Extension columns from input_layer__patient are not selected.

select
      cast(person_id as {{ dbt.type_string() }}) as person_id
    , cast(first_name as {{ dbt.type_string() }}) as first_name
    -- explicit Tuva column list only
    , cast(data_source as {{ dbt.type_string() }}) as data_source
    , tuva_last_run_datetime as tuva_last_run
from {{ ref('input_layer__patient') }}
cross join tuva_last_run

After (`core__stg_clinical_patient.sql`)

Extension columns are appended via macro.

{%- set tuva_core_columns -%}
    cast(person_id as {{ dbt.type_string() }}) as person_id,
    cast(first_name as {{ dbt.type_string() }}) as first_name,
    cast(data_source as {{ dbt.type_string() }}) as data_source
{%- endset -%}

{%- set tuva_extension_columns -%}
    {{ select_extension_columns(ref('input_layer__patient'), strip_prefix=false) }}
{%- endset -%}

{%- set tuva_metadata_columns -%}
    , tuva_last_run_datetime as tuva_last_run
{%- endset -%}

select
    {{ tuva_core_columns }}
    {{ tuva_extension_columns }}
    {{ tuva_metadata_columns }}
from {{ ref('input_layer__patient') }}
cross join tuva_last_run

This change in model structure is the key: standard columns stay explicit, while custom extension fields are appended dynamically.

Host Project Usage Example

A host patient model can publish extension fields using the configured prefix:

select
      person_id
    , patient_id
    , first_name
    , last_name
    , birth_date
    , sex
    , race
    , care_navigator as x_care_navigator
    , salesforce_id as x_salesforce_id
    , risk_score as x_risk_score
    , primary_language as x_primary_language
    , data_source
from {{ source('source_input', 'patient') }}

In core__patient, you get:

All standard Tuva columns
x_care_navigator (or care_navigator when passthrough.strip: true)
x_salesforce_id (or salesforce_id when passthrough.strip: true)
x_risk_score (or risk_score when passthrough.strip: true)
x_primary_language (or primary_language when passthrough.strip: true)

The Macro

Location: macros/core/select_extension_columns.sql

Purpose:

Detect columns by prefix from a relation using adapter.get_columns_in_relation
Optionally qualify with alias
Optionally strip prefix in output aliasing
Return SQL-ready select expressions with leading commas

Core matching logic:

{%- for col in source_columns -%}
    {%- if col.name.lower().startswith(effective_prefix.lower()) -%}
        {%- set stripped_name = col.name[effective_prefix | length:] -%}
        {%- if effective_strip_prefix -%}
            {%- set col_expr = alias_prefix ~ col.name ~ ' as ' ~ stripped_name -%}
        {%- else -%}
            {%- set col_expr = alias_prefix ~ col.name -%}
        {%- endif -%}
        {%- do extension_columns.append(col_expr) -%}
    {%- endif -%}
{%- endfor -%}

Full macro code

{% macro select_extension_columns(relation, alias=none, prefix=none, strip_prefix=none) %}
    {%- if not execute -%}
        {{ return('') }}
    {%- endif -%}

    {%- set passthrough_config = var('passthrough', {}) -%}
    {%- set effective_prefix = prefix if prefix is not none else passthrough_config.get('prefix', 'x_') -%}
    {%- set effective_strip_prefix = strip_prefix if strip_prefix is not none else passthrough_config.get('strip', false) -%}

    {%- set source_columns = adapter.get_columns_in_relation(relation) -%}
    {%- if source_columns | length == 0 -%}
        {{ return('') }}
    {%- endif -%}

    {%- set alias_prefix = alias ~ '.' if alias else '' -%}
    {%- set extension_columns = [] -%}

    {%- for col in source_columns -%}
        {%- if col.name.lower().startswith(effective_prefix.lower()) -%}
            {%- set stripped_name = col.name[effective_prefix | length:] -%}
            {%- if effective_strip_prefix -%}
                {%- set col_expr = alias_prefix ~ col.name ~ ' as ' ~ stripped_name -%}
            {%- else -%}
                {%- set col_expr = alias_prefix ~ col.name -%}
            {%- endif -%}
            {%- do extension_columns.append(col_expr) -%}
        {%- endif -%}
    {%- endfor -%}

    {%- if extension_columns | length > 0 -%}
        {%- for col_expr in extension_columns %}
    , {{ col_expr }}
        {%- endfor -%}
    {%- endif -%}
{% endmacro %}

Macro Parameters

Parameter	Default	Description
`relation`	required	Relation to inspect for extension columns
`alias`	`none`	Optional table alias for column references
`prefix`	`var('passthrough').get('prefix', 'x_')`	Prefix that identifies extension columns
`strip_prefix`	`var('passthrough').get('strip', false)`	Remove prefix in output alias

Macro Usage Examples

Keep prefix:

{{ select_extension_columns(ref('input_layer__patient'), strip_prefix=false) }}

With alias:

{{ select_extension_columns(ref('input_layer__medical_claim'), alias='claim', strip_prefix=false) }}

Use global strip configuration:

{{ select_extension_columns(ref('input_layer__patient')) }}

Other Details

Naming Convention

Prefix	Meaning
`x_`	Extension column passed through Tuva core models

Why this default works well:

Short and easy to scan
Clear distinction from standard Tuva columns
Low risk of naming collision
Optional removal in outputs via passthrough.strip

Implementation Scope in Tuva

The v0.17.0 release applies this pattern across macros and core models, including:

Area	Example Files
Macros	`macros/core/select_extension_columns.sql`, `macros/core/smart_union.sql`
Staging models	`core__stg_clinical_patient.sql`, `core__stg_claims_medical_claim.sql`, `core__stg_clinical_eligibility.sql`
Final models	`core__condition.sql`, `core__procedure.sql`, `core__medication.sql`, `core__lab_result.sql`, `core__observation.sql`

Adoption Checklist

Add extension fields in host input models with the configured prefix (default x_).
Set vars.passthrough.prefix and optional vars.passthrough.strip in dbt_project.yml.
Confirm core models use select_extension_columns(...) where explicit column lists are present.
Run model builds and validate expected extension columns in core outputs.

Closing

This pattern lets teams preserve organization-specific fields without forking Tuva or maintaining heavy downstream rejoin logic. The result is cleaner host projects, less duplicate SQL, and more reusable Tuva outputs for marts and analytics.
